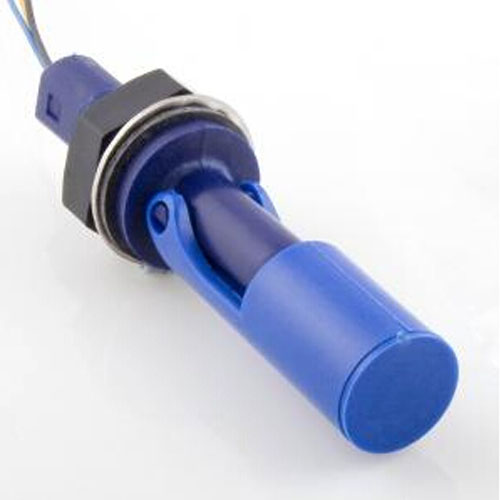

LS-304-11
>

LS-304-11

Features
  • High or low level sensing
  • Internal fitting
  • Reed Switch reliability
  • Nitrile sealing washer
  • Easy installation
Comments
  • High or low level sensing, single pole double throw.
  • Normally open or normally closed by rotating through 180
  • Suitable for a wide range of liquids
  • Interface option available
  • Nylon 6.6 Material
Applications
  • Chemical high or low level
  • Diesel Fuel
  • Fuel low level
  • Alcohols
  • Low Oil Detection

Material
　　Housing Material Glass Filled Nylon 6.6
　　Float Material Glass Filled Nylon 6.6
　　Contact Material Ruthenium
　　Float SG
0.85
　　Operating Temperature °C -30 to 110
　　Medium Fuels, Oils, Alcohols
　　Housing Colour Blue
　　Float Colour Blue

Mechanical Specifications
　　Shock 50g for 11mS duration
　　Vibration 35g up to 500Hz
　　Maximum Pressure 4.7 Bar
　　IP IP65

Switching
　　Switch Action (Reed Switch) SPDT
　　Max Switching Voltage VDC 175
　　Max Switching Voltage VAC 125
　　Max Switching Current Amps 0.4A DC/0.28A AC
　　Max Switching Load Watt 5
　　Operate Mode N/C with float horizontal
　　Contact Form C

Cable
Cable Length 3 x 0.5M single insulated
Connection Type Stripped Cables
Cable Type 24AWG, 7/0.2mm PVC insulated
Cable Colour Yellow/Blue/Black

Mounting
　　Thread M16
　　Fitting Internal
　　Mounting Horizontal

Technical Drawing
